   ◆设备的主要功能

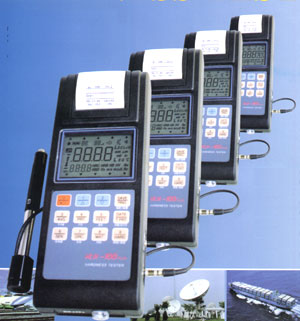

 HLM-100 PLUS intelligent Leeb hardness tester is designed for high measuring accuracy,wide hardness ranges,ease of operation,portability and high reliability.It can convert the Leeb hardness test results to HRB,HRC,HB,HV and HSD。The build-in mini-printer and RS-232C communication can be used convenient1y.It has been used at difficultly accessing locations or confined spaces especially.

   HLM-10O PLUS 智能化里氏硬度仪具有测量精度高、体积小、可靠性高、功能强大、使用方便、测量范围宽等特点,可以将测量得到的里氏硬度值自动转换成布、洛、维、肖等硬度值,通过一体化微型打印机迅速得到测试报告。专用的计算机通讯软件能使分析工作至加直观、高效。

Measuring Precision:Relative Error ±0.8%(750-800LD)
Measuring Ranges:
LD 200-900   HB30-650    HRC 20-68
HRB20-100    HV 80-940    HSD32.5-99.5
Large LCD Display with EL Backlight
Batch Testing and Check Limits Alarm
Up to 255 groups of Stored Results
Built-in Mini-printer
RS-232C Communication
Intelligent Charging Control
Testing for steel and cast stee1,alloy tool stee1,stainless stee1,grey cast iron,cast aluminum alloy, brass,bronze,copper,bearing stee1。
Operation Temperature: -10℃~45℃
Operation Voltage: 4.5~5.5V
Printer Paper: φ30mm×44mm
Dimensions: 224mm×84mm×38mm
Weight: 0.7Kg(main unit)
HLM-100 PLUS 技术指标
示值误差:±0.8%(750-800HLD
测量及换算范围:
HLD 200-900    HB 30-650    HRC 20-68
HRB 20-100    HV 80-940    HSD32.5-99.5
EL背光照明的大屏幕液晶显示
批量检测功能,可设置上下限报警
255组存贮数据空间
一体化微型打印机
RS-232C 计算机通信接口
智能化电池充电管理
测试材料种类:钢和铸钢(低合金)、合金工具钢、不锈钢和耐热钢、灰口铸铁、球墨铸铁、铸铝合金、铜锌合金(黄铜)、铜铝合金、铜锡合金、纯铜、轴承钢
工作温度: -10℃~45℃
工作电压: 4.5~5.5V
打印纸: φ30mm×44mm
尺寸: 224mm×84mm×38mm
主机重量: 0.7Kg(main unit)

D type is a general-purpose probe with a broad applicability range.
DC Type is a shortened version of D type,good for testing in a limited space.
D+15 type is another modified version of D type with an extended probe in length of 15mm; suitable for testing slots and gear surfaces.
C type with low impacting energy for testing small,light,and thin specimens as well as the shallow surface of a hardened layer.
G type with high impacting energy for testing large,thick,or heavy specimens and some rough surfaces of cast or forged specimens.
D type device is the typically provided as a standard accessory;other types are optional and can be supplied at additional cost.
系列化冲击装置
D型为基本型,适用范围很宽。
DC型为D型的超短改造型,适合空间高度受限的场合(长度86mm)。
D+15型为D型的加长改造型,它有一个15mm的细长端部,适合于沟槽、齿面的测试
C型的冲击能量很小,专用于测试小、轻、薄部件及深度较浅的表面硬化层。
G型冲击能量很大,专用于大、厚、重及表面较粗糙的铸锻件。
本机标准配置为D型冲击装置,其它冲击装置可根据需要选用。

The special supporting rings can be selected while the radius is less than 30mm.
当被测工件的曲率半径小于30mm时,可选配异形支撑以保证测试精度。

Materials & Measuring range 材料和测试范围
Impact device D、DC 冲击装置
No.
Materials
材料
LD
HRC
HRB
HB(30D2)
HSD
HV
1
steel and cast steel
钢和铸钢(低合金)
300-900
20-68
38.4-99.5
80-647
32.5-99.5
80-940
2
alloy tool steel
合金工具钢
300-840
20.4-67.1
80-898
3
stainless steel
不锈钢和耐热钢
300-800
19.6-62.4
46.5-101.7
85-655
85-802
4
grey case iron
灰口铸铁
400-660
131-387
*Has not been heat treated
5
nodular cast iron
球墨铸铁
360-650
90-334
*Has not been heat treated
6
cast aluminum alloy
铸铝合金
200-560
10D2)30-160
7
brass
铜锌合金(黄铜)
200-550
20.0-95.3
40-173
8
bronze
铜铝铜锡合金
300-700
60-290
9
copper
纯铜
200-690
60-290
10
bearing steel
轴承钢
518-872
518-872
20.0-65.0
*中国标准洛氏(HRC)硬度块采用此材料
